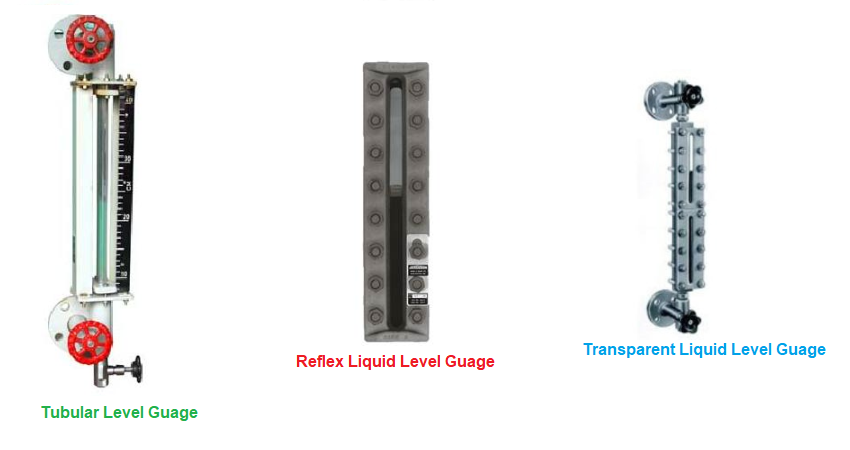

1) Tubular type:
These level guages have low cost and reliable for direct reading of clear liquid levels at low pressure & temperature conditions. Applications: Chemical / Petro-chemical, Fertilizer, Effluent treatment plants, Chemical dosing system etc.2) Reflex Liquid Level Gauges: These level guages are designed for safe and positive visual indication of liquid level in vessels under high pressure & temperature. It is flat glass gauge. Reflex Level Gauges suitable for storage tanks, low pressure boilers and liquid gases. The prismatic effect in the glass makes the liquid appear black and therefore giving clear indication of level. Applications: Ammonia, colorless liquids in pressurized tanks, Vacuum etc
3) Transparent Liquid Level Gauges: These level guages are designed for safe and positive visual indication of liquid level in vessels under high pressure & temperature. It is flat glass gauge. Transparent and High Pressure Gauges are suitable where the media is corrosive to glass and for higher pressure applications up to 5000 psi. Weld Pad versions also available. When ordering please specify the Centre to Centre distance, the fitting required, max. usage pressure, temperature, and the media involved. Applications: Caustics, HF acids & other glass attacking liquids, dirty & viscous liquids in pressurized tanks, etc
